- 3.5-inch digital TFT LCD with LED backlight
- Resolution: 320 x 240 pixels
- Dimensions: 76.9 x 64.4 x 4.23mm
- Active area: 70.08 x 52.56mm
- RGB stripe pixel configuration
- Digital 24-bit input interface
- Operating temperatures: -20 to 70°C
- Storage temperatures: -30 to 80°C
- Built-in resistive touch panel with four wires
- Touch controller: USB, RS232 and PS/2 for further option
Standard TFT Display
D035G-090114-1
D035G-090114-1

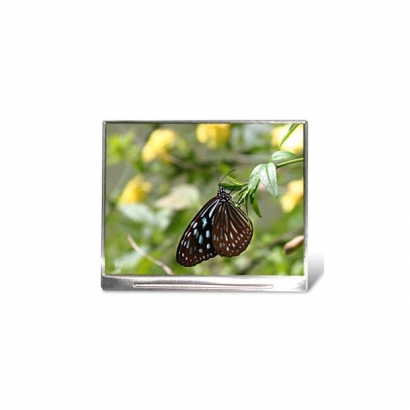

3.5-inch Digital TFT LCD Module with 320 x 240 Pixels Resolution and Resistive Touchscreen
